Canvas edges explained: mirror, image wrap or plain sides?

Start with the picture, then decide what happens at its edges.

A stretched canvas has a front, four sides and material secured behind the frame. The picture you see straight on is only one part of the object. The side option decides how the photograph meets the edge: continuing around it, reflecting around it, or stopping beside a plain colour.

The measured diagrams use one square family portrait, so the crop differences are easy to compare. The corner close-ups use the same dog canvas across all four treatments to show the fabric, folds and side finish. The family source photograph is shown first; the diagrams explain geometry, while the corner views show the physical finish.

For YI2C, the available options are Gallery wrap, Mirror sides, White sides and Colour sides, subject to the selected product and size. The creator is the authority for what you can order. Two separate decisions matter: the crop on the front and what goes on the sides.

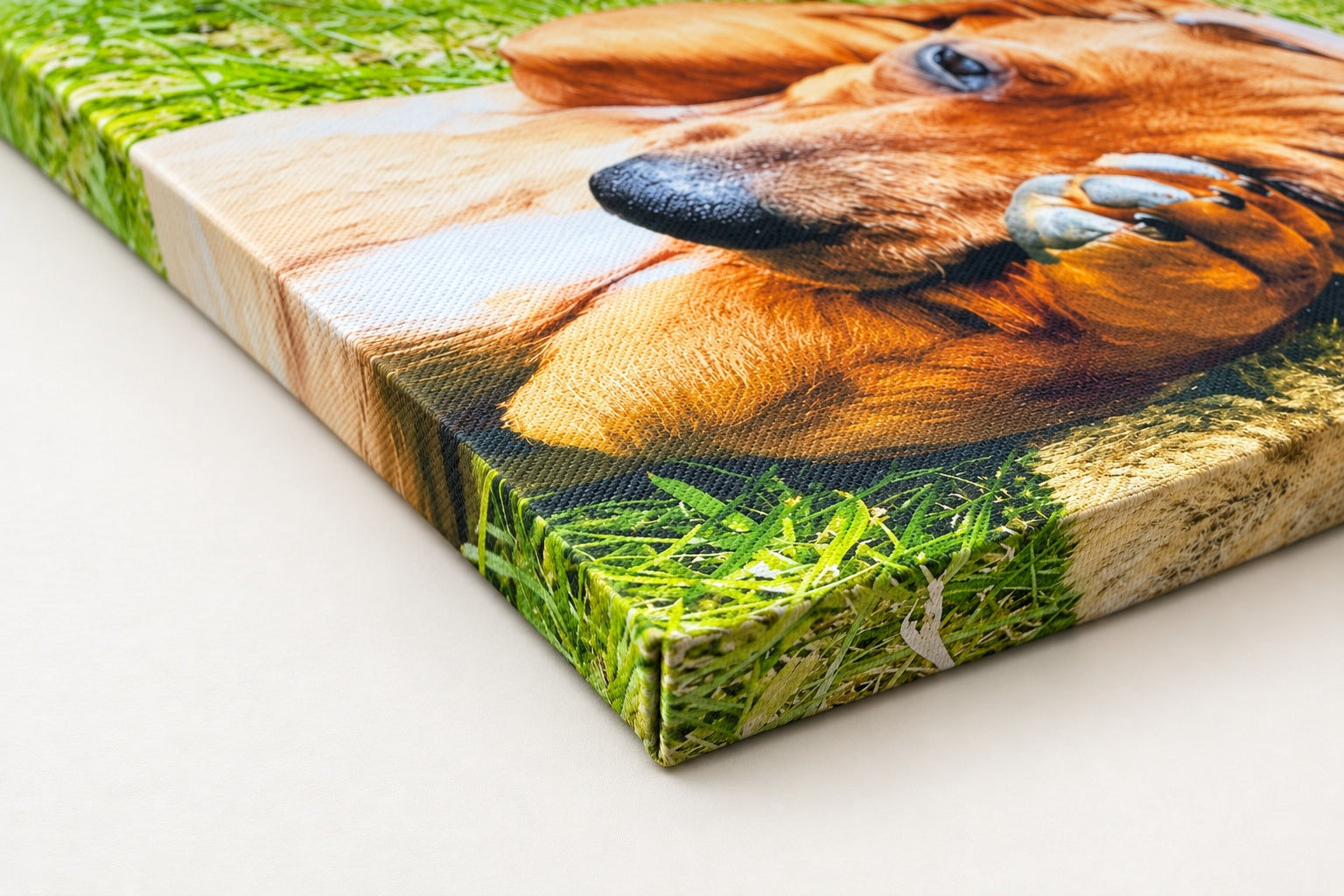

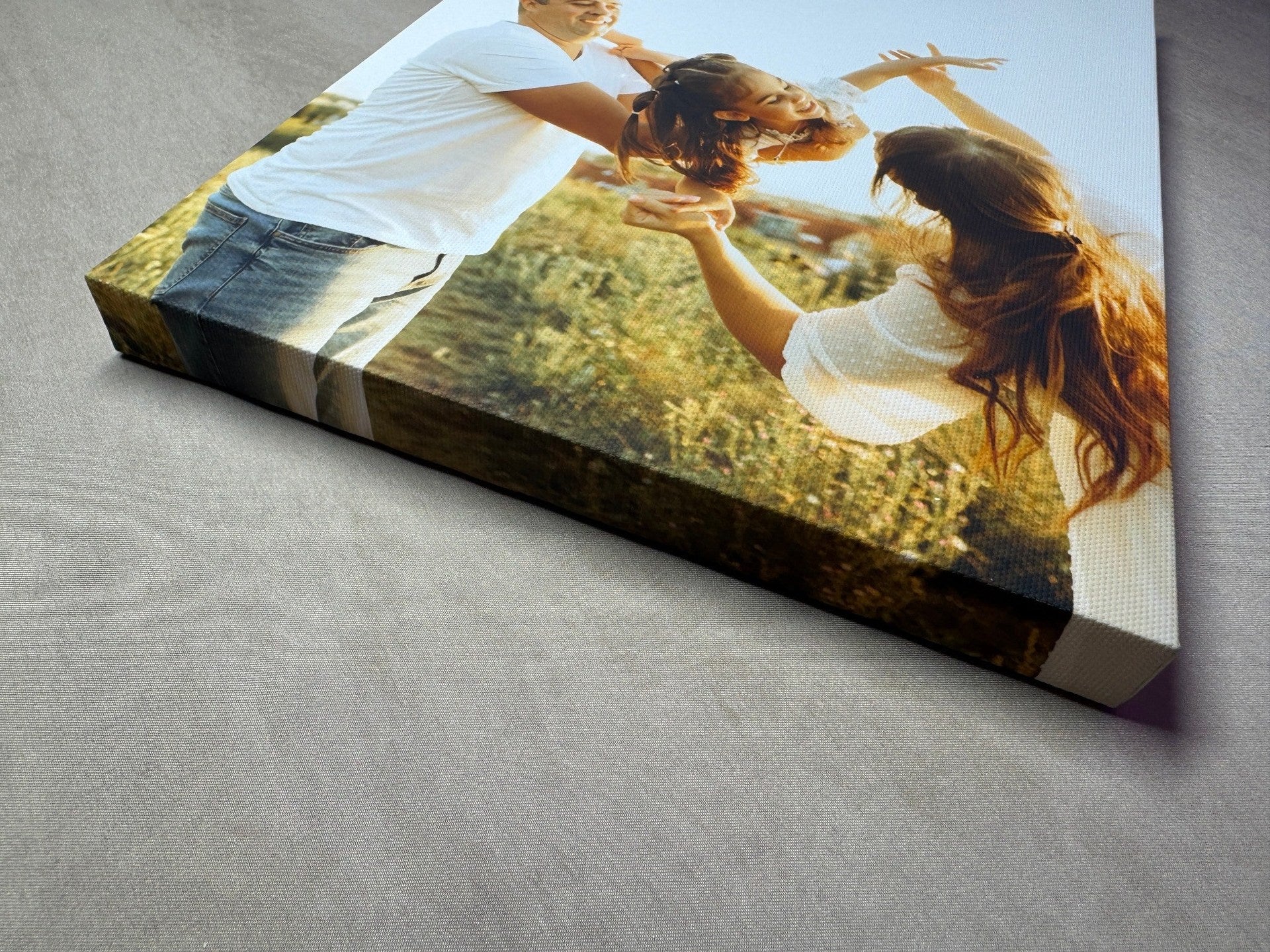

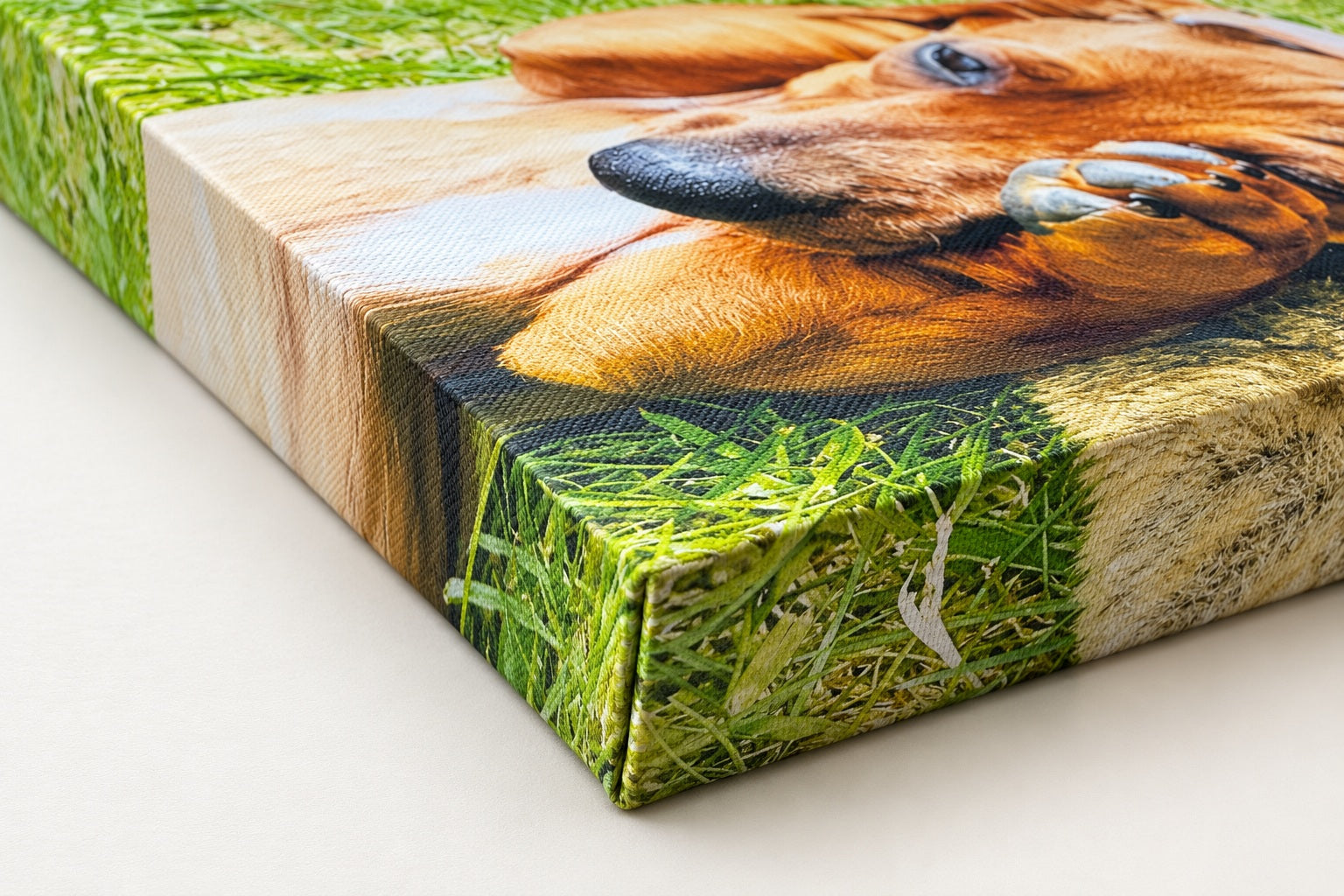

Gallery wrap: the photograph continues around the frame.

With an image-wrap treatment, part of the photograph occupies the front and part continues over the sides. A landscape with sky, grass or sea around the main subject can suit this beautifully. The object feels continuous when you walk past it, because the photograph follows the edge.

Anything near the boundary needs a closer look. A face, ear, hand, date or landmark can move partly off the front. That detail may still exist on the side, but it is no longer visible in the same way when you look straight at the canvas.

The phrase “gallery wrap” can also describe stretched-canvas construction generally. Here, Gallery wrap means the YI2C image-side option. Read the explanation beside the option rather than assuming every printer uses the words in exactly the same way.

A continuous-looking corner is desirable, but a corner is still a fold in fabric over a frame. It is not a perfectly rigid photographic box. The printed surface, neat stretching and careful fold together create the finished edge.

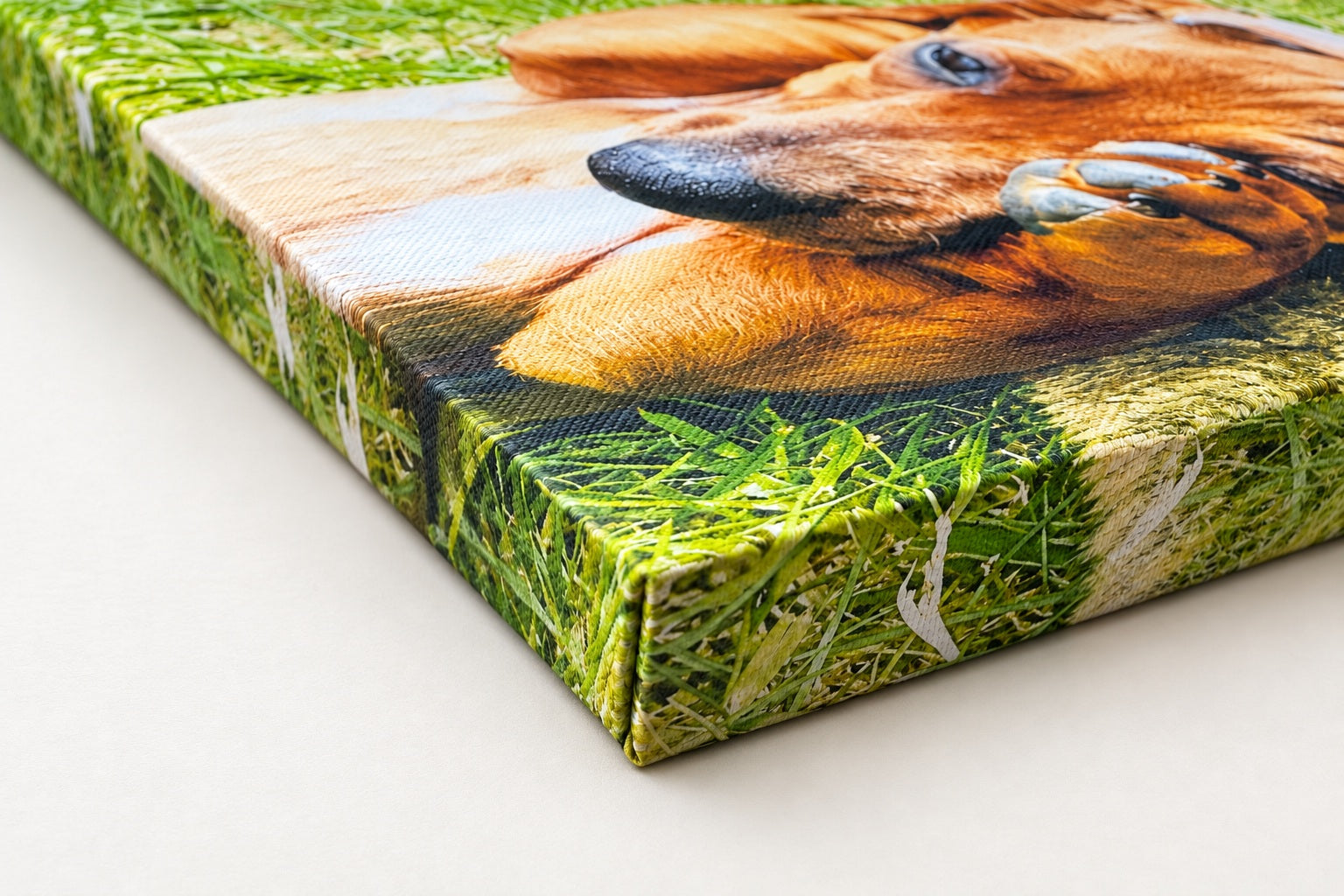

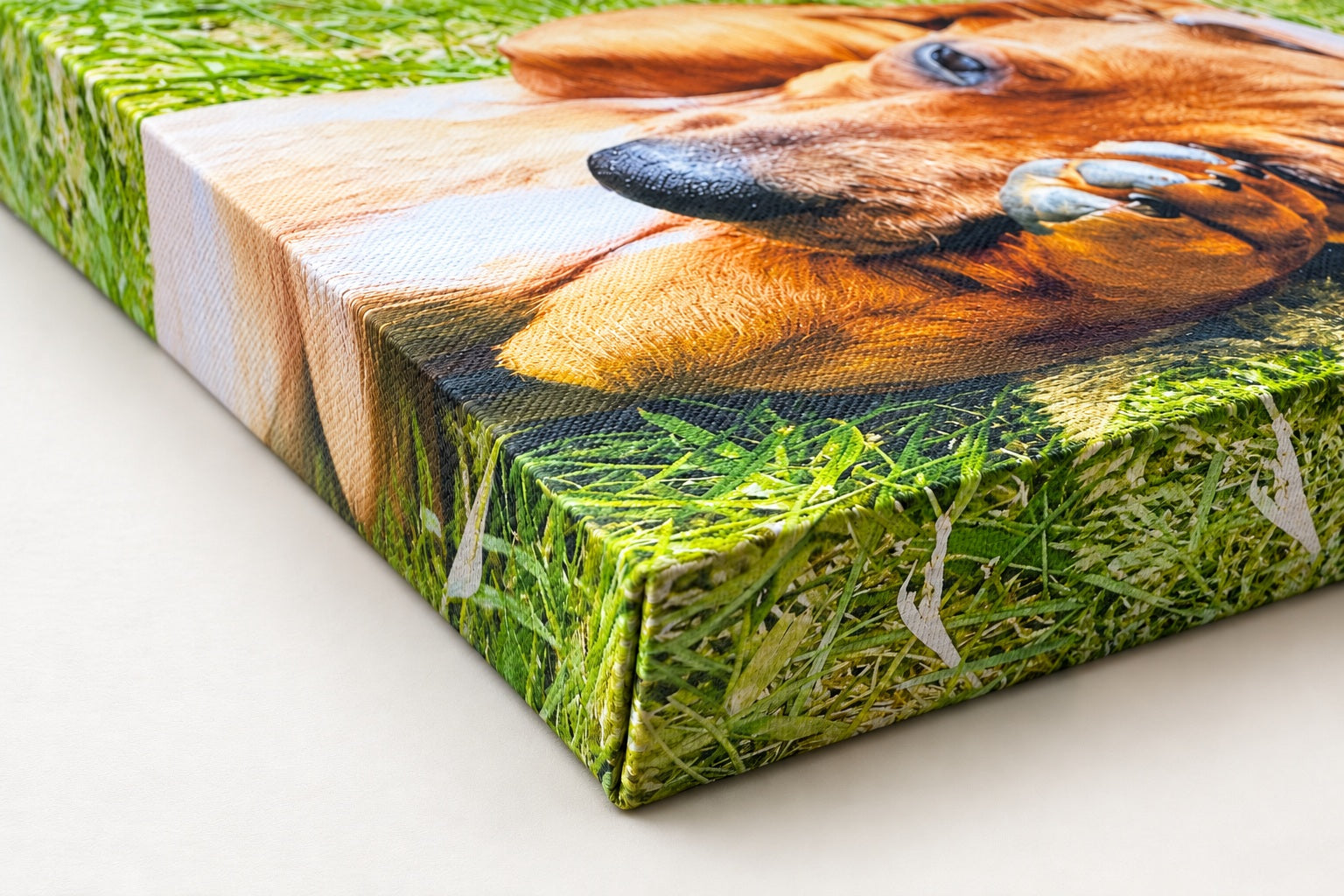

Mirror sides: retain the chosen front crop and reflect its edges.

Mirrored sides use a flipped strip of the image beside the front. The front crop stays as chosen while reflected detail supplies the side coverage. That is useful when the composition is already tight and you want the faces or favourite details to remain on the front.

Reflection is a real visual change. A branch near the boundary can appear to bend back; a face very close to an edge can repeat; lettering can become reversed. Grass, leaves and soft background often disguise the reflection better than faces, straight architecture or strong text.

Deeper sides display a wider reflected strip. You may notice a reflection more clearly on a deeper small canvas than on a slim large canvas. Look at all four edges, particularly the one nearest the important subject.

Mirror sides protect the selected front composition from side consumption. They do not recover parts removed when a rectangular photograph was first cropped to a square. Choose the front proportion before judging the edge treatment.

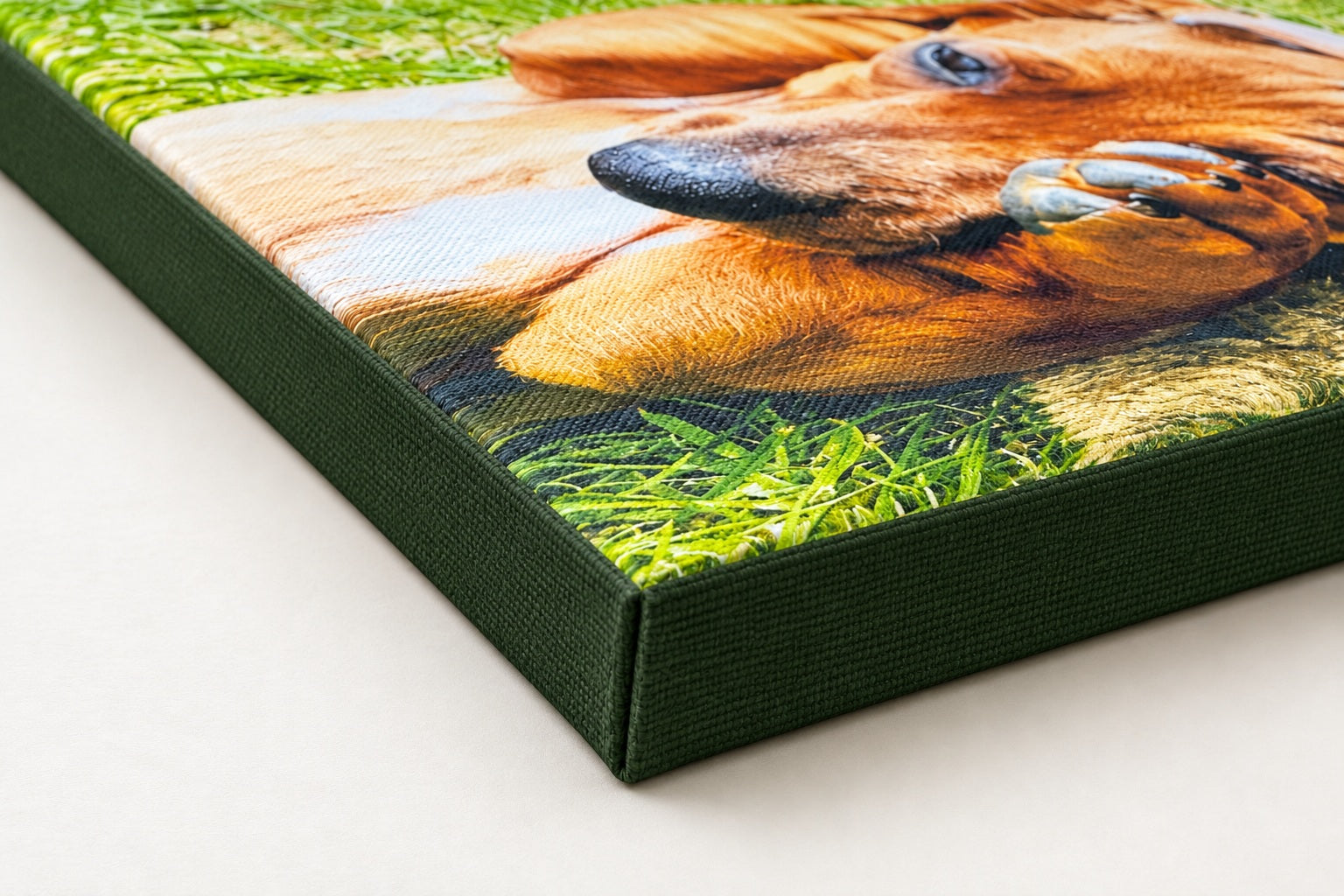

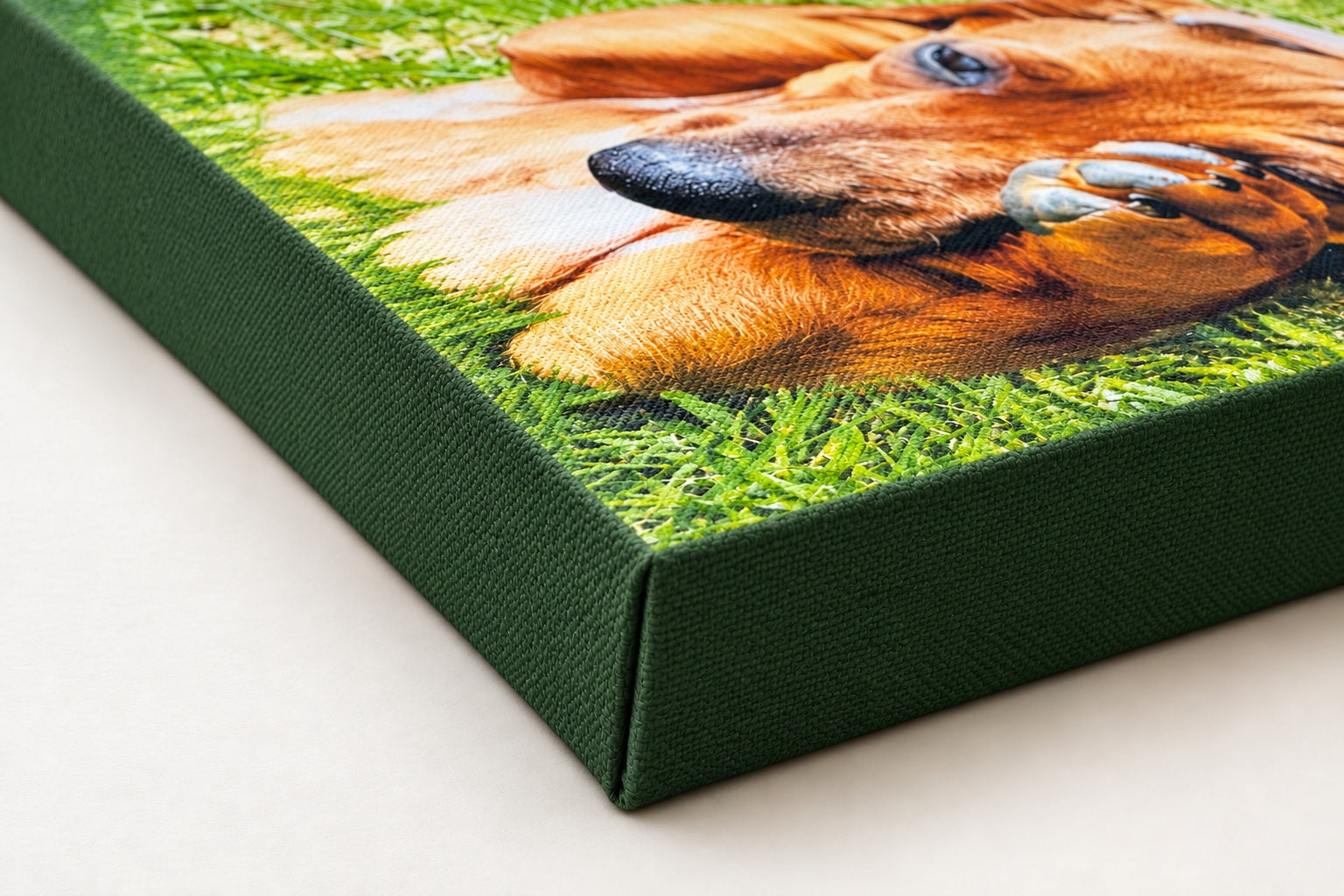

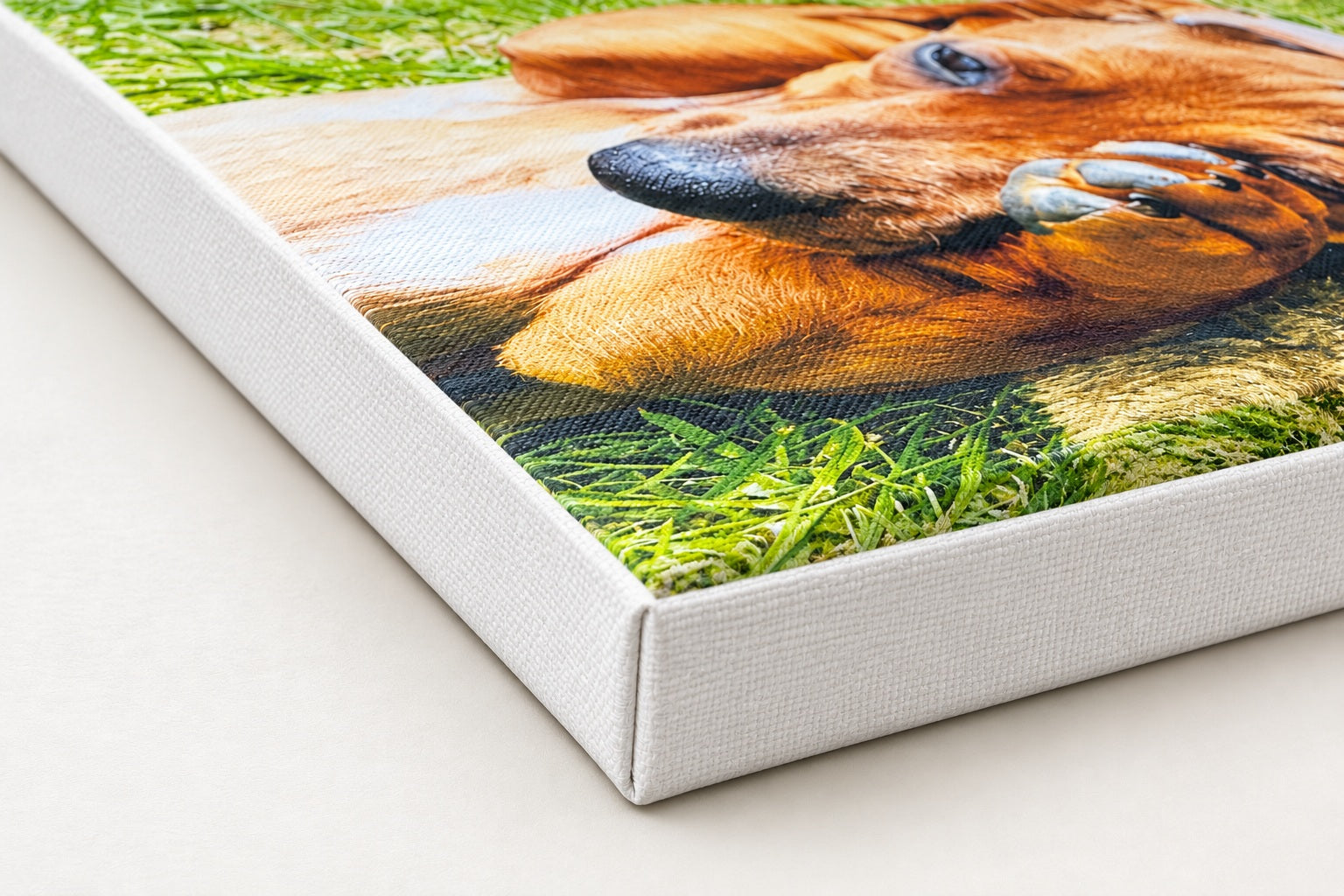

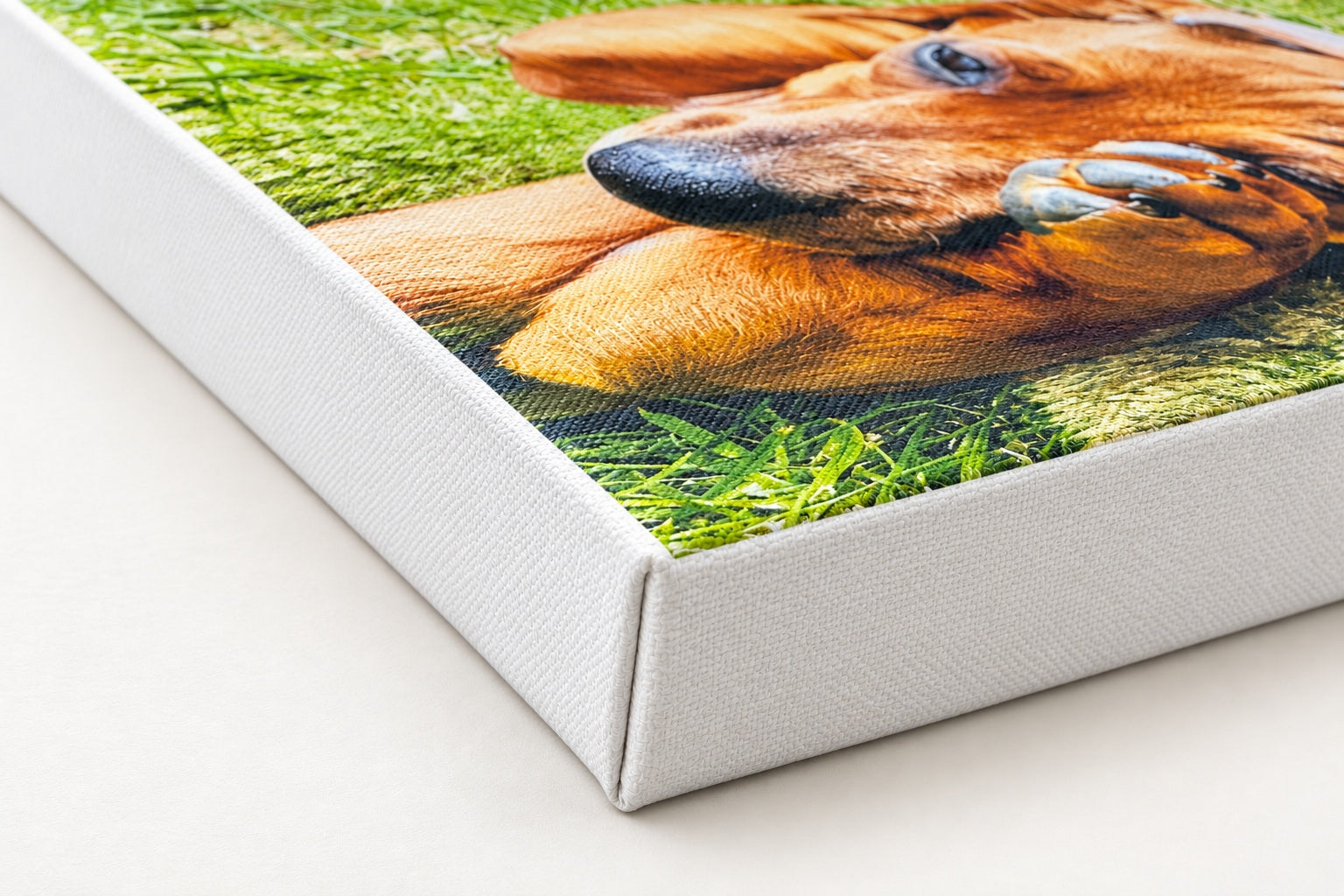

White or colour sides: let the photograph end at the front.

Plain sides keep the chosen image on the front, with a clean side treatment around it. White can feel light against a pale wall and works well where a mirrored face or repeated text would be distracting. A dark side can give a bolder profile; a colour chosen to suit the picture can be a deliberate finishing choice.

White sides are not the same thing as a white border on the front. The front image can reach the front edge while the side remains white. Likewise, a coloured side does not automatically create a coloured mount around the picture.

The meeting point between a photograph and a plain side is a physical fold. In real production, positioning and stretching have tolerances. Check the preview and leave breathing room around critical text or an exact designed border rather than expecting a mathematically invisible seam at every millimetre.

For some images, the plain side is the most composed finish. It is a useful option for illustrations with words, artwork with precise edges, tightly framed portraits and pictures where a reflection would look strange.

Depth changes the amount of image needed for the sides.

Planning one scene across several canvases? Our split-canvas planning guide explains front crops, wall gaps and gallery outer edges with mirrored internal sides, arranged with the workshop.

The deeper the stretcher, the more material is needed between the front and the back. If that side coverage comes from the photograph itself, increasing depth can move more of the source composition away from the front. If the coverage is mirrored or plain, the source does not need to supply that extra width in the same way.

All demonstrations use YI2C’s published depths: Slim 0.75 inch and Chunky 1.75 inches. Confirm the current options for your chosen product in the creator. The comparisons keep front size fixed so the depth difference is clear.

Depth is different from the width or height of the front. An 8 × 8-inch canvas describes a front face; its sides need additional printed material. Material secured behind the frame needs extra allowance again. The diagrams below stop at the front and side geometry, excluding back fastening allowance and production tolerances.

For a closer look at how far each canvas projects from the wall, read our Slim, Chunky and floating-frame canvas guide. This guide concentrates on the picture at the sides.

The wrap calculation: why small canvases are more affected.

For the centred teaching model, let the front be W inches wide and H inches high, and the side depth be d. The photograph fills a flat rectangle measuring (W + 2d) by (H + 2d). The central W by H rectangle becomes the front. Each outer band supplies a side; the corner regions are handled during folding.

The fraction of source width visible on the front is W ÷ (W + 2d). The height fraction is H ÷ (H + 2d). Multiply them to calculate the fraction of the source layout’s area assigned to the front. These are exact results for this stated model, not a guarantee that every preview or workshop preparation uses that mapping.

For a square front and square source, the model needs no separate aspect-ratio crop. With a rectangular front or a different source shape, the source first needs to fit the flat layout. That can introduce an additional crop. Never add a shape-crop percentage and a side percentage casually: they depend on the actual mapping and order of operations.

“Not on the front” is more precise than “lost”. Some of those source regions appear on the sides, while corner or fastening areas may be folded or concealed. The original file is not destroyed. The comparison concerns what you see on the front face.

8 × 8 inches: a deeper edge is a larger share of the picture.

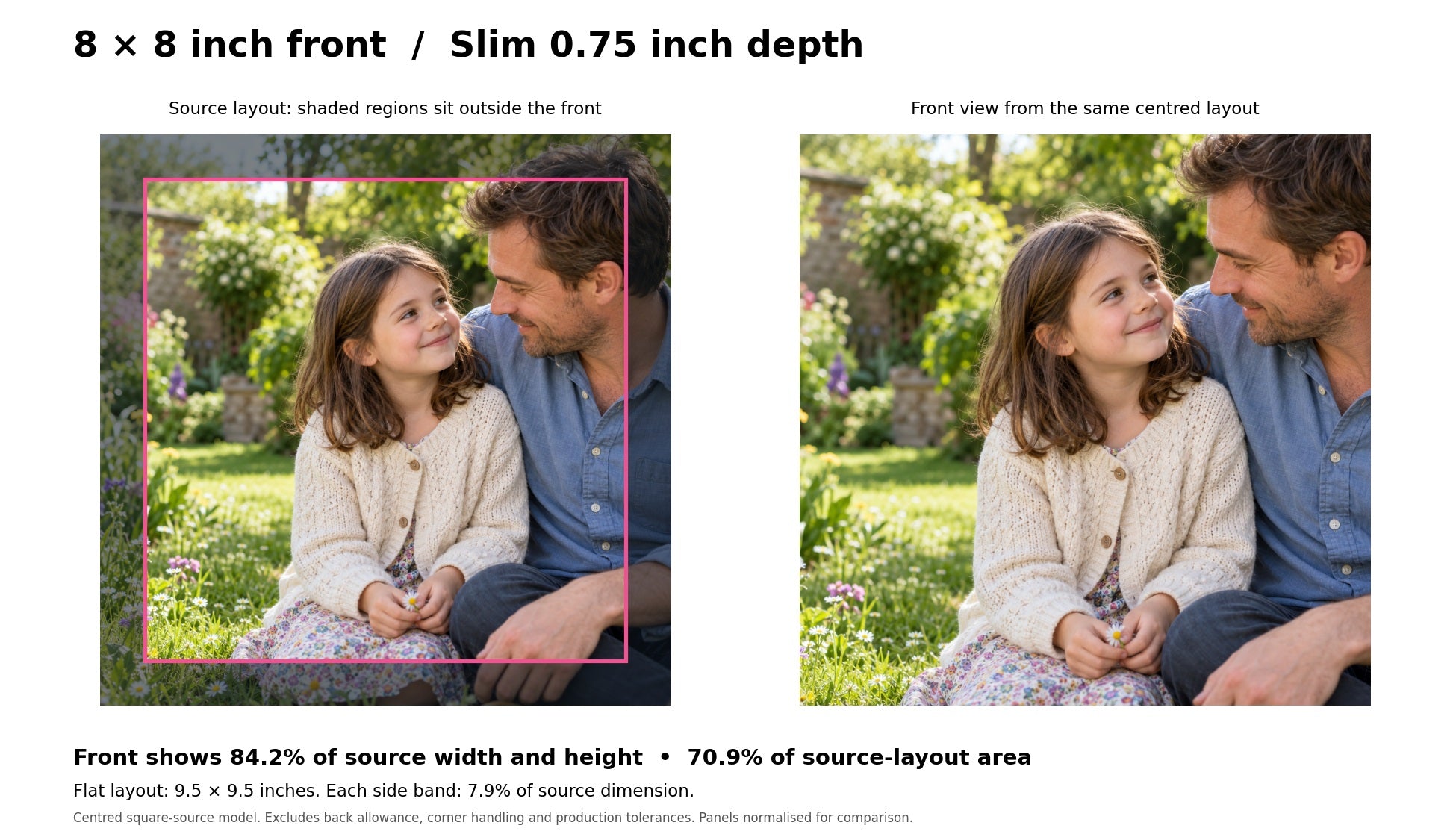

With Slim 0.75-inch sides, an 8-inch front sits inside a 9.5-inch flat layout. The front shows 84.2% of source width and height: 70.9% of source-layout area. Each side band occupies 7.9% of the source dimension.

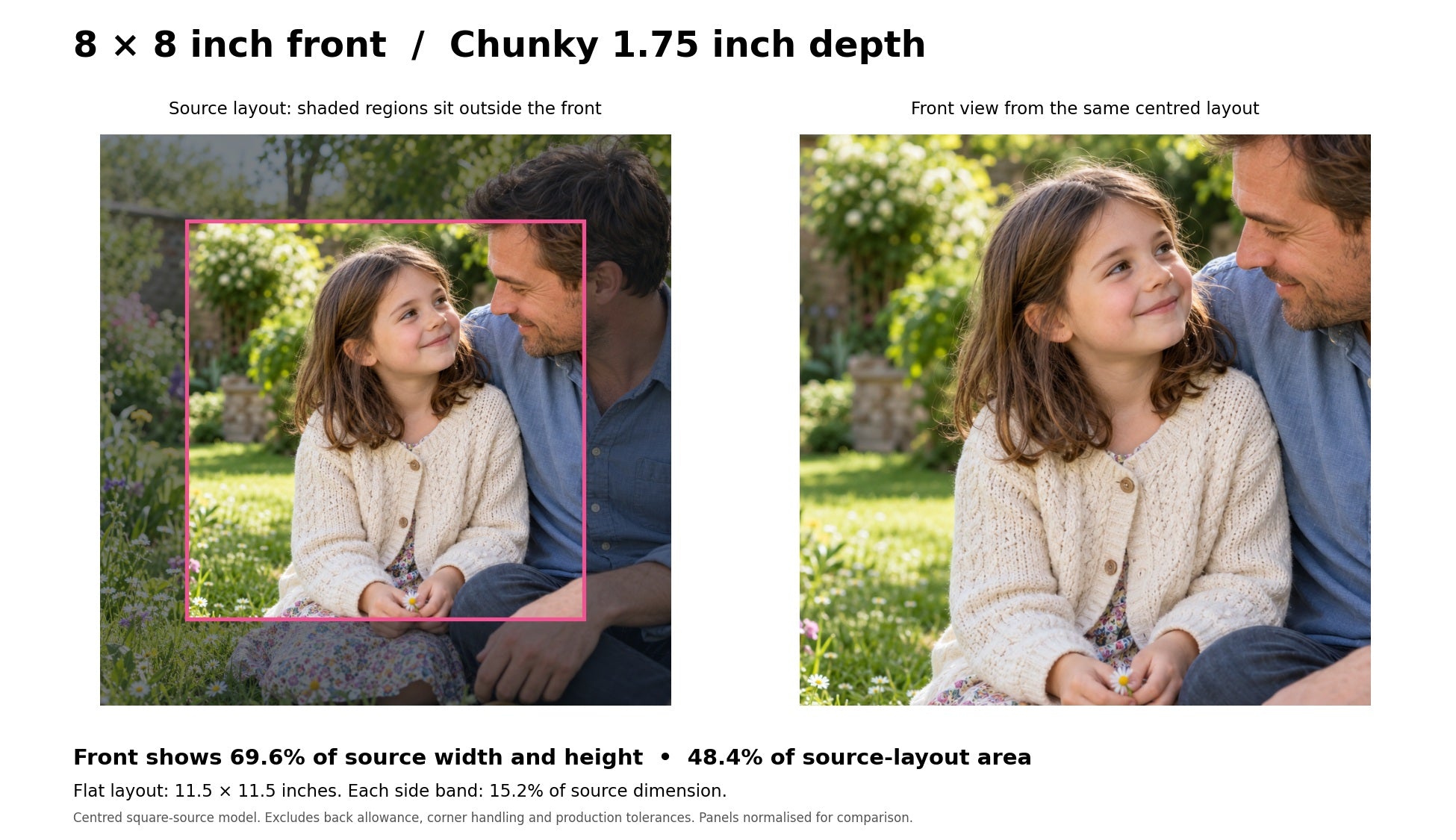

With Chunky 1.75-inch sides, the flat layout becomes 11.5 inches across. The front shows 69.6% of source width and height, or 48.4% of source-layout area. Each outer band occupies 15.2%. A face near the edge can therefore change considerably between these depths.

The front still measures 8 × 8 inches in both examples. What changes is the scale and portion of the source photograph assigned to it. This comparison describes the stated source-to-layout model; the actual preview remains your ordering reference.

40 × 40 inches: the same depth takes a smaller proportion.

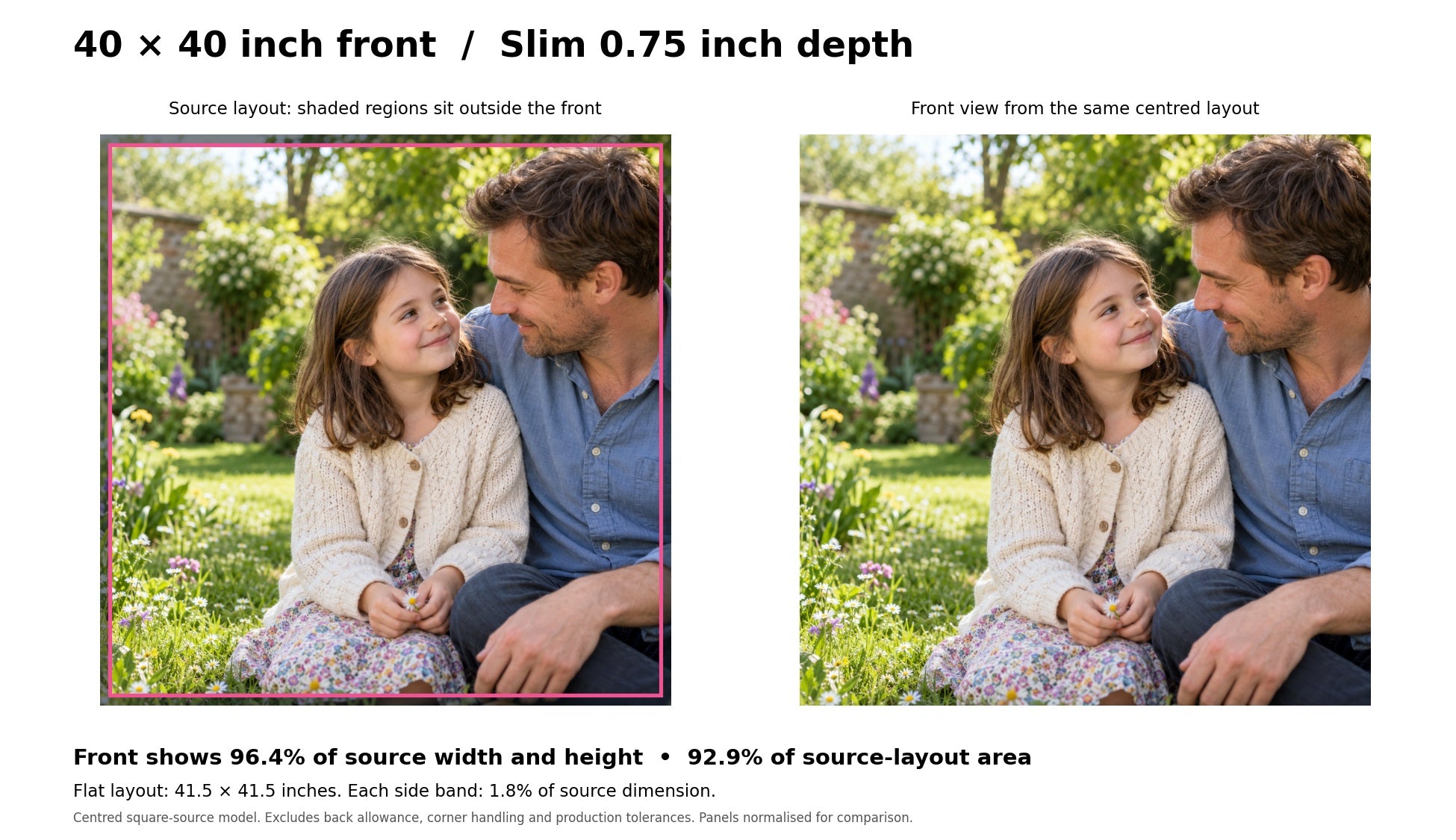

With Slim 0.75-inch sides, a 40-inch front sits inside a 41.5-inch flat layout. The front shows 96.4% of source width and height, or 92.9% of source-layout area. Each band is about 1.8% of the source dimension.

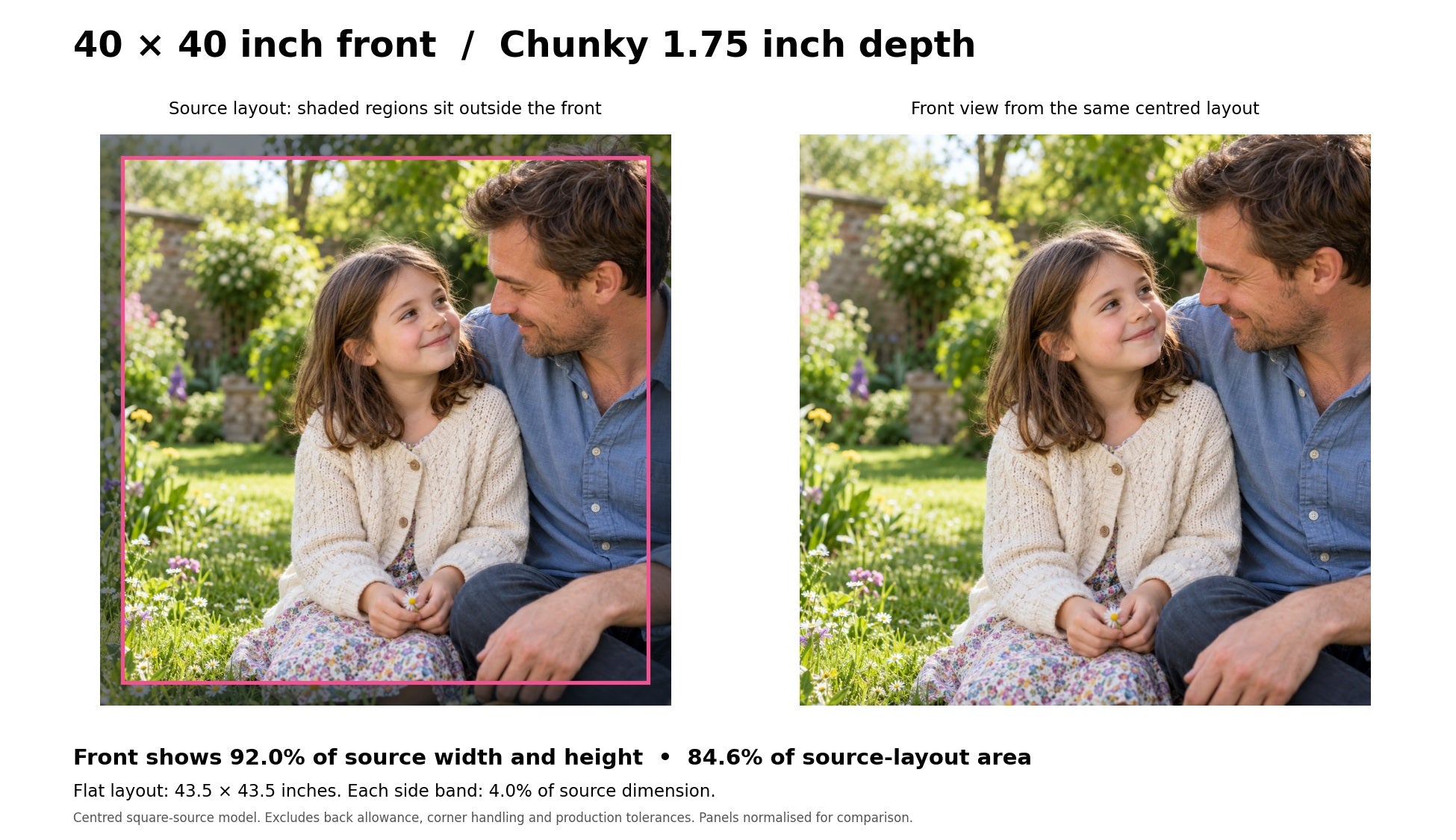

With Chunky 1.75-inch sides, the flat layout is 43.5 inches across. The front shows 92.0% of source width and height, or 84.6% of source-layout area. Each band is about 4.0%. More image is assigned to sides than with Slim, but proportionally much less than on the 8 × 8-inch example.

This is why the same frame depth can strongly affect a small tight portrait and have a gentler proportional effect on a larger front. A large canvas can still move an eye or date onto a side if it nearly touches the original boundary.

Different photographs need different edge decisions.

Portraits: check hair, ears, shoulders and hands, not just the eyes. A face near the edge may favour Mirror or White sides, but a reflected face on the side can still be noticeable. Group photographs: inspect the people at both ends; preserving the centre is not enough.

Pets: ears, paws, noses and tails often reach farther than the main body. A dog lying diagonally can look beautifully composed in the original but be tight at two canvas corners. Landscapes: open background usually gives flexibility, yet a lighthouse, horizon or strong tree at the edge deserves attention.

Architecture and geometric artwork: a mirror can create a kink, a reversed roof or a repeating line. A plain side may be cleaner. Lettering and logos: keep all important text inside a generous front safe area. A mirror can reverse letters, while Gallery wrap can carry part of a word away from the front.

Collages: check every outer tile and any outer text. The centre photographs may be safe while a face in the last row is not. Borders: a precise thin front border is sensitive to both cropping and fold placement. Explain what must remain visible before ordering.

Cropping and wrapping are two separate changes.

A landscape photograph made into a square needs a composition decision even with white or mirrored sides. A portrait file placed into a landscape front can need more substantial cropping. Neither edge choice changes the fact that the front shape differs from the original.

First choose a shape that suits the image, then position the front crop. Next choose sides and depth and check again. Changing any one of those settings can affect the finished view. A reassuring side option does not make an unsuitable front crop disappear.

If the image is too tight, consider a different proportion, a smaller depth, mirrored or plain sides, or a different photograph. Adding genuine background from an original wider file can help. Inventing missing background or stretching pixels is a separate image-preparation choice and should never silently change important people or objects.

What changes when a floating frame surrounds the canvas?

A floating frame adds an outer frame with a shadow gap around the canvas. It is a different choice from the side treatment printed onto the canvas itself. The canvas still has a front and sides inside the frame.

YI2C’s current wrap guide says the floating-frame option in the Canvas builder includes mirror wrap. Check the live creator for the finish and combinations available with the size you choose. Frame colour is also separate from changing the photograph’s colours.

The outer frame may make the side less dominant, but it does not justify ignoring the crop. Keep the picture’s important details on the front and judge the complete object. Do not assume every side treatment is selectable with every framed product.

A practical order for checking your canvas.

1. Choose the original file and the front size/proportion. 2. Position the photograph so the people and details you care about sit comfortably inside the front. 3. Compare the available depths. 4. Compare Gallery, Mirror, White and Colour sides where offered. 5. Look straight on, then look at each side and corner.

When you change depth, check again. When you change size, check again. When you change from a square to a rectangle, check again. A preview that suited one combination may not suit another.

If something important is close to the boundary, tell us what must remain visible. The useful instruction is specific: “Keep both ears on the front”, “Do not crop the person on the right”, or “The full date must remain readable”. You do not need to know the geometry to tell us which part matters.
